FCOS核心代码阅读笔记

Contents
  1. fcos_core/modeling/rpn/fcos/fcos.py
  2. fcos_core/modeling/rpn/fcos/loss.py
  3. fcos_core/modeling/rpn/fcos/inference.py
  4. 参考资料

fcos_core/modeling/rpn/fcos/fcos.py

这个文件主要包括fcos的网络结构，包含三个loss: loss_cls, loss_reg, loss_centerness。

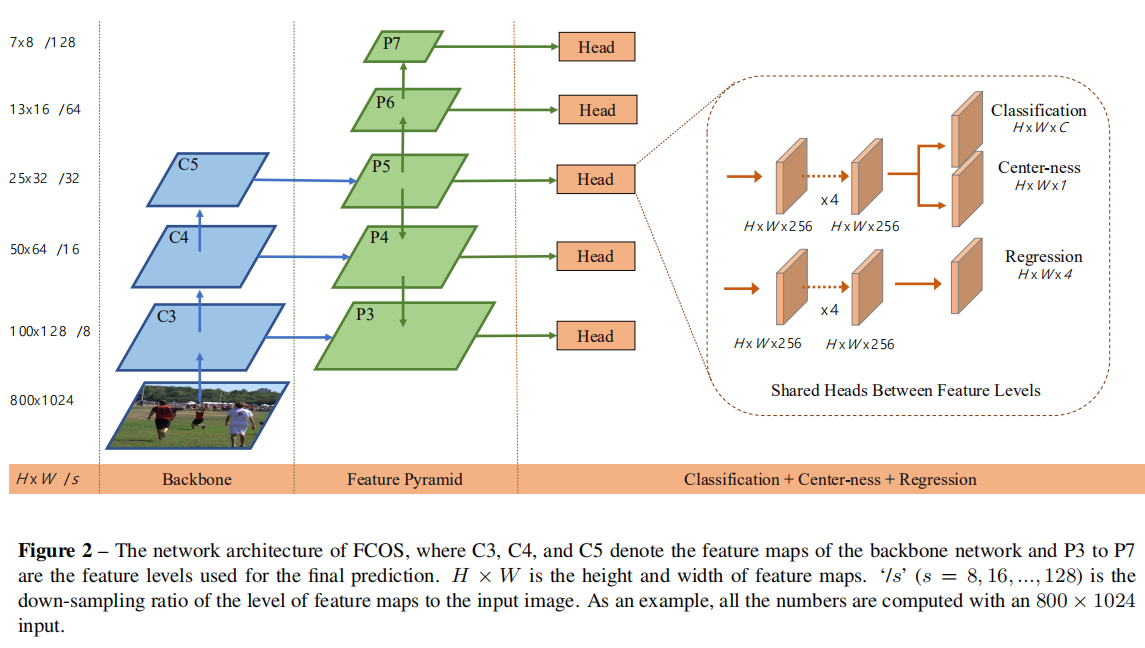

FCOS Architecture

其中一个关键函数是compute_locations：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
def compute_locations(self, features):
    locations = []
    for level, feature in enumerate(features):
        h, w = feature.size()[-2:]
        locations_per_level = self.compute_locations_per_level(
            h, w, self.fpn_strides[level],
            feature.device
        )
        locations.append(locations_per_level)
    return locations

def compute_locations_per_level(self, h, w, stride, device):
    shifts_x = torch.arange(
        0, w * stride, step=stride,
        dtype=torch.float32, device=device
    )
    shifts_y = torch.arange(
        0, h * stride, step=stride,
        dtype=torch.float32, device=device
    )
    shift_y, shift_x = torch.meshgrid(shifts_y, shifts_x)
    shift_x = shift_x.reshape(-1)
    shift_y = shift_y.reshape(-1)
    locations = torch.stack((shift_x, shift_y), dim=1) + stride // 2
    return locations

对于fpn的5个特征图：P3，P4，P5，P6，P7，计算特征图上的点映射到原图的位置，即生成一个二维网格（meshgrid）。

上面代码的24行加上stride // 2是为了解决一个向下取整造成的问题，使原图上的对应点尽可能接近location(x,y)的感受野中心。

最后得到的locations是一个list，包含5个level特征图的所有点映射到原图的坐标。

fcos_core/modeling/rpn/fcos/loss.py

上述locations作为了prepare_targets函数的第一个参数。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
def prepare_targets(self, points, targets):
    object_sizes_of_interest = [
        [-1, 64],
        [64, 128],
        [128, 256],
        [256, 512],
        [512, INF],
    ]
    expanded_object_sizes_of_interest = []
    for l, points_per_level in enumerate(points):
        # a.new_tensor has the same type with a
        object_sizes_of_interest_per_level = \
            points_per_level.new_tensor(object_sizes_of_interest[l])
        expanded_object_sizes_of_interest.append(
            object_sizes_of_interest_per_level[None].expand(len(points_per_level), -1)
        )

    expanded_object_sizes_of_interest = torch.cat(expanded_object_sizes_of_interest, dim=0)
    num_points_per_level = [len(points_per_level) for points_per_level in points]
    self.num_points_per_level = num_points_per_level
    points_all_level = torch.cat(points, dim=0)
    # shape: (P, N), (P, N, 4), P is the image nums
    labels, reg_targets = self.compute_targets_for_locations(
        points_all_level, targets, expanded_object_sizes_of_interest
    )

    # labels[i] is a tuple
    for i in range(len(labels)):
        labels[i] = torch.split(labels[i], num_points_per_level, dim=0)
        reg_targets[i] = torch.split(reg_targets[i], num_points_per_level, dim=0)

    labels_level_first = []
    reg_targets_level_first = []
    # labels_level_first[level] has P*N_level elements
    # reg_targets_level_first[level] has shape (P*N_level, 4)
    for level in range(len(points)):
        labels_level_first.append(
            torch.cat([labels_per_im[level] for labels_per_im in labels], dim=0)
        )

        reg_targets_per_level = torch.cat([
            reg_targets_per_im[level]
            for reg_targets_per_im in reg_targets
        ], dim=0)

        if self.norm_reg_targets:
            reg_targets_per_level = reg_targets_per_level / self.fpn_strides[level]
        reg_targets_level_first.append(reg_targets_per_level)

    return labels_level_first, reg_targets_level_first

首先构造了一个expanded_object_sizes_of_interest变量，对于每一个采样点，都需要有一个对应的sizes_of_interest。expanded_object_sizes_of_interest按照每个level创建了该level所有采样点的sizes_of_interest，然后用torch.cat合并起来，形成了(N, 2)形状的数据，N为所有采样点的个数。

num_points_per_level是每个level的点个数，这个用于后续的操作。

points_all_level包含了所有采样点，跟expanded_object_sizes_of_interest类似，也用torch.cat合并，形成了(N, 2)的形状。

compute_targets_for_locations函数使用points_all_level, targets, expanded_object_sizes_of_interest计算分类和回归的标注即labels和reg_targets，形状为(P, N)和(P, N, 4)，P为图像数量。

compute_targets_for_locations函数得到的labels和reg_targets是把所有level的数据拼接在一起的。现在要根据每个level的点个数即num_points_per_level把他们拆开，按照level优先做成一个list。最后的结果是labels_level_first[level]，拥有P*N_level个元素。reg_targets_level_first[level]形状为(P*N_level, 4)，N_level为该level采样点的个数。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
def compute_targets_for_locations(self, locations, targets, object_sizes_of_interest):
    labels = []
    reg_targets = []
    xs, ys = locations[:, 0], locations[:, 1]

    for im_i in range(len(targets)):
        targets_per_im = targets[im_i]
        assert targets_per_im.mode == "xyxy"
        bboxes = targets_per_im.bbox
        labels_per_im = targets_per_im.get_field("labels")
        area = targets_per_im.area()

        l = xs[:, None] - bboxes[:, 0][None]
        t = ys[:, None] - bboxes[:, 1][None]
        r = bboxes[:, 2][None] - xs[:, None]
        b = bboxes[:, 3][None] - ys[:, None]
        # shape: (N, M, 4)
        reg_targets_per_im = torch.stack([l, t, r, b], dim=2)

        if self.center_sampling_radius > 0:
            is_in_boxes = self.get_sample_region(
                bboxes,
                self.fpn_strides,
                self.num_points_per_level,
                xs, ys,
                radius=self.center_sampling_radius
            )
        else:
            # no center sampling, it will use all the locations within a ground-truth box
            is_in_boxes = reg_targets_per_im.min(dim=2)[0] > 0

        max_reg_targets_per_im = reg_targets_per_im.max(dim=2)[0]
        # limit the regression range for each location
        is_cared_in_the_level = \
            (max_reg_targets_per_im >= object_sizes_of_interest[:, [0]]) & \
            (max_reg_targets_per_im <= object_sizes_of_interest[:, [1]])

        locations_to_gt_area = area[None].repeat(len(locations), 1)
        locations_to_gt_area[is_in_boxes == 0] = INF
        locations_to_gt_area[is_cared_in_the_level == 0] = INF

        # if there are still more than one objects for a location,
        # we choose the one with minimal area

        # shape (N)
        locations_to_min_area, locations_to_gt_inds = locations_to_gt_area.min(dim=1)

        reg_targets_per_im = reg_targets_per_im[range(len(locations)), locations_to_gt_inds]
        labels_per_im = labels_per_im[locations_to_gt_inds]
        labels_per_im[locations_to_min_area == INF] = 0

        labels.append(labels_per_im)
        reg_targets.append(reg_targets_per_im)

    return labels, reg_targets

由于每张图像可能含有不同数量的bbox，所以先读取targets的labels和bbox，创建labels_per_im变量和reg_targets_per_im变量（形状为(N, M, 4)，N为所有采样点的个数，M为bbox数量）。

根据论文3.2节，不同尺度大小的bbox将被分配到不同的fpn level去计算，不在level对应范围的bbox将被忽略。这样操作之后若某一个采样点仍然对应到多个bbox，则取最小面积的bbox。fcos中的实现是把level对应范围之外的bbox面积设成无穷大，用locations_to_gt_area这个变量实现位置到gt中面积的映射，代码48行使reg_targets_per_im取到面积最小的bbox。同理每个采样点也有一个对应的类别，对于不在gt bbox的点类别设成背景。最终的labels_per_im形状为(N)，reg_targets_per_im形状为(N, 4)。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
def __call__(self, locations, box_cls, box_regression, centerness, targets):
    """
    Arguments:
        locations (list[Tensor])
        box_cls (list[Tensor])
        box_regression (list[Tensor])
        centerness (list[Tensor])
        targets (list[BoxList])

    Returns:
        cls_loss (Tensor)
        reg_loss (Tensor)
        centerness_loss (Tensor)
    """
    N = box_cls[0].size(0)
    num_classes = box_cls[0].size(1)
    labels, reg_targets = self.prepare_targets(locations, targets)

    box_cls_flatten = []
    box_regression_flatten = []
    centerness_flatten = []
    labels_flatten = []
    reg_targets_flatten = []
    for l in range(len(labels)):
        box_cls_flatten.append(box_cls[l].permute(0, 2, 3, 1).reshape(-1, num_classes))
        box_regression_flatten.append(box_regression[l].permute(0, 2, 3, 1).reshape(-1, 4))
        labels_flatten.append(labels[l].reshape(-1))
        reg_targets_flatten.append(reg_targets[l].reshape(-1, 4))
        centerness_flatten.append(centerness[l].reshape(-1))

    box_cls_flatten = torch.cat(box_cls_flatten, dim=0)
    box_regression_flatten = torch.cat(box_regression_flatten, dim=0)
    centerness_flatten = torch.cat(centerness_flatten, dim=0)
    labels_flatten = torch.cat(labels_flatten, dim=0)
    reg_targets_flatten = torch.cat(reg_targets_flatten, dim=0)

    pos_inds = torch.nonzero(labels_flatten > 0).squeeze(1)

    box_regression_flatten = box_regression_flatten[pos_inds]
    reg_targets_flatten = reg_targets_flatten[pos_inds]
    centerness_flatten = centerness_flatten[pos_inds]

    num_gpus = get_num_gpus()
    # sync num_pos from all gpus
    total_num_pos = reduce_sum(pos_inds.new_tensor([pos_inds.numel()])).item()
    num_pos_avg_per_gpu = max(total_num_pos / float(num_gpus), 1.0)

    cls_loss = self.cls_loss_func(
        box_cls_flatten,
        labels_flatten.int()
    ) / num_pos_avg_per_gpu

    if pos_inds.numel() > 0:
        centerness_targets = self.compute_centerness_targets(reg_targets_flatten)

        # average sum_centerness_targets from all gpus,
        # which is used to normalize centerness-weighed reg loss
        sum_centerness_targets_avg_per_gpu = \
            reduce_sum(centerness_targets.sum()).item() / float(num_gpus)

        reg_loss = self.box_reg_loss_func(
            box_regression_flatten,
            reg_targets_flatten,
            centerness_targets
        ) / sum_centerness_targets_avg_per_gpu
        centerness_loss = self.centerness_loss_func(
            centerness_flatten,
            centerness_targets
        ) / num_pos_avg_per_gpu
    else:
        reg_loss = box_regression_flatten.sum()
        reduce_sum(centerness_flatten.new_tensor([0.0]))
        centerness_loss = centerness_flatten.sum()

    return cls_loss, reg_loss, centerness_loss

fcos_core/modeling/rpn/fcos/inference.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
def forward_for_single_feature_map(
            self, locations, box_cls,
            box_regression, centerness,
            image_sizes):
        """
        Arguments:
            anchors: list[BoxList]
            box_cls: tensor of size N, A * C, H, W
            box_regression: tensor of size N, A * 4, H, W
        """
        N, C, H, W = box_cls.shape

        # put in the same format as locations
        box_cls = box_cls.view(N, C, H, W).permute(0, 2, 3, 1)
        box_cls = box_cls.reshape(N, -1, C).sigmoid()
        box_regression = box_regression.view(N, 4, H, W).permute(0, 2, 3, 1)
        box_regression = box_regression.reshape(N, -1, 4)
        centerness = centerness.view(N, 1, H, W).permute(0, 2, 3, 1)
        centerness = centerness.reshape(N, -1).sigmoid()

        candidate_inds = box_cls > self.pre_nms_thresh
        pre_nms_top_n = candidate_inds.view(N, -1).sum(1)
        pre_nms_top_n = pre_nms_top_n.clamp(max=self.pre_nms_top_n)

        # multiply the classification scores with centerness scores
        box_cls = box_cls * centerness[:, :, None]

        results = []
        for i in range(N):
            per_box_cls = box_cls[i]
            per_candidate_inds = candidate_inds[i]
            per_box_cls = per_box_cls[per_candidate_inds]

            per_candidate_nonzeros = per_candidate_inds.nonzero()
            per_box_loc = per_candidate_nonzeros[:, 0]
            per_class = per_candidate_nonzeros[:, 1] + 1

            per_box_regression = box_regression[i]
            per_box_regression = per_box_regression[per_box_loc]
            per_locations = locations[per_box_loc]

            per_pre_nms_top_n = pre_nms_top_n[i]

            if per_candidate_inds.sum().item() > per_pre_nms_top_n.item():
                per_box_cls, top_k_indices = \
                    per_box_cls.topk(per_pre_nms_top_n, sorted=False)
                per_class = per_class[top_k_indices]
                per_box_regression = per_box_regression[top_k_indices]
                per_locations = per_locations[top_k_indices]

            detections = torch.stack([
                per_locations[:, 0] - per_box_regression[:, 0],
                per_locations[:, 1] - per_box_regression[:, 1],
                per_locations[:, 0] + per_box_regression[:, 2],
                per_locations[:, 1] + per_box_regression[:, 3],
            ], dim=1)

            h, w = image_sizes[i]
            boxlist = BoxList(detections, (int(w), int(h)), mode="xyxy")
            boxlist.add_field("labels", per_class)
            boxlist.add_field("scores", torch.sqrt(per_box_cls))
            boxlist = boxlist.clip_to_image(remove_empty=False)
            boxlist = remove_small_boxes(boxlist, self.min_size)
            results.append(boxlist)

        return results

这个文件主要完成推理阶段的操作，forward_for_single_feature_map对每个fpn level的结果做后处理。

网络输出的box_cls, box_regression, centerness和locations作为输入，由pre_nms_thresh取阈值，得到大于阈值的点的索引candidate_inds。

对pre_nms_top_n做clamp操作使其最大值为self.pre_nms_top_n，也就是最多保留这么多个点。如果candidate_inds求和（即保留的点数量）大于pre_nms_top_n，则保留box_cls, class, box_regression, locations的top_k个结果。最后把结果添加到boxlist的结构中。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
def select_over_all_levels(self, boxlists):
    num_images = len(boxlists)
    results = []
    for i in range(num_images):
        # multiclass nms
        result = boxlist_ml_nms(boxlists[i], self.nms_thresh)
        number_of_detections = len(result)

        # Limit to max_per_image detections **over all classes**
        if number_of_detections > self.fpn_post_nms_top_n > 0:
            cls_scores = result.get_field("scores")
            image_thresh, _ = torch.kthvalue(
                cls_scores.cpu(),
                number_of_detections - self.fpn_post_nms_top_n + 1
            )
            keep = cls_scores >= image_thresh.item()
            keep = torch.nonzero(keep).squeeze(1)
            result = result[keep]
        results.append(result)
    return results

select_over_all_levels对刚才的所有level的结果做nms（C++实现），然后取得分最高的fpn_post_nms_top_n个检测结果，使用torch.kthvalue得到cls_scores的阈值。

参考资料

[Paper] [Code] Tian, Zhi, et al. “FCOS: Fully Convolutional One-Stage Object Detection.” arXiv preprint arXiv:1904.01355 (2019).
